#research, compiled

Ion Migration with Nd Ca Na dopant in perovskite

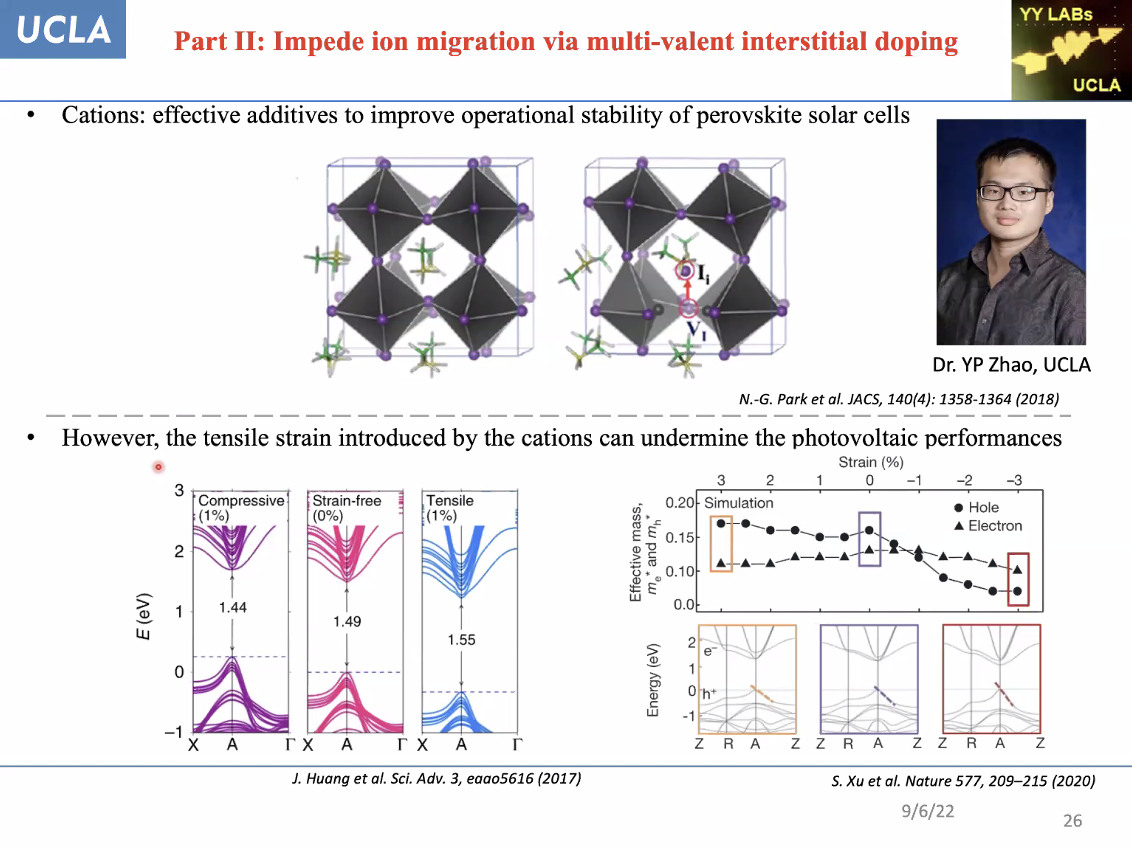

Pasted image 20220907112222.png

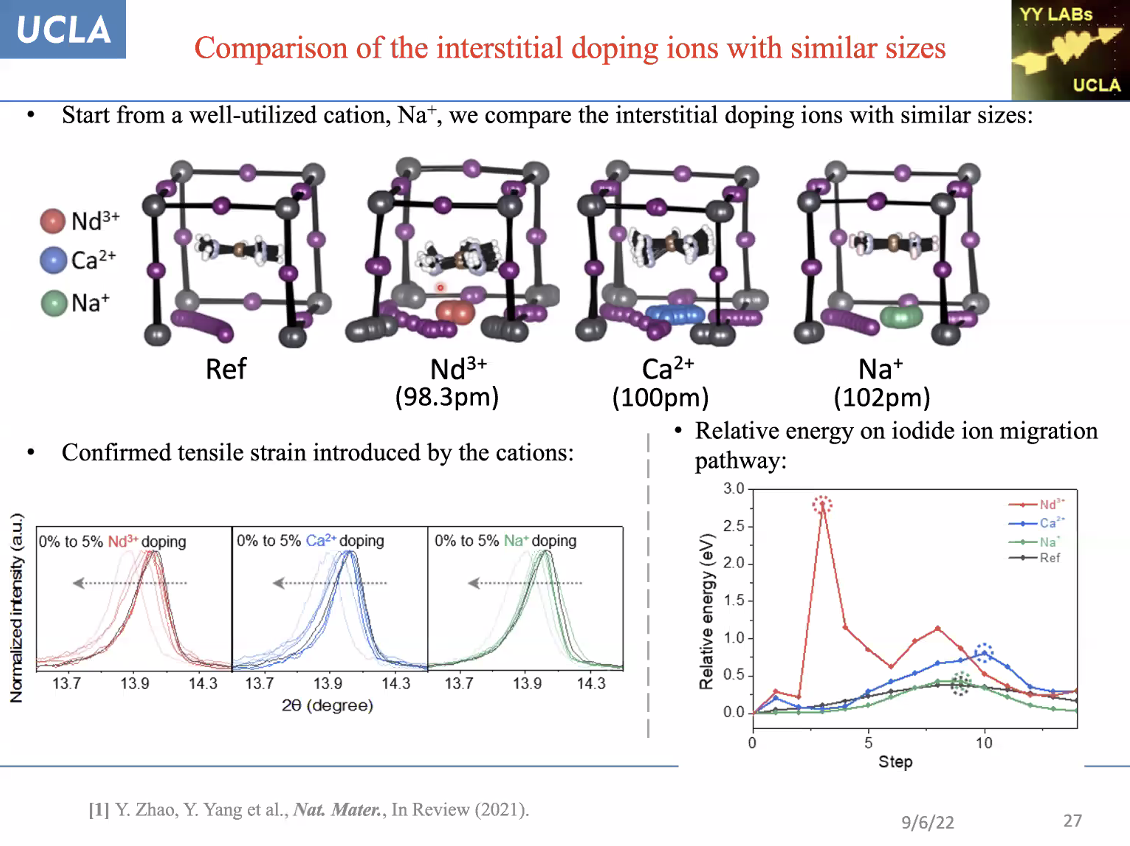

Pasted image 20220907112325.png

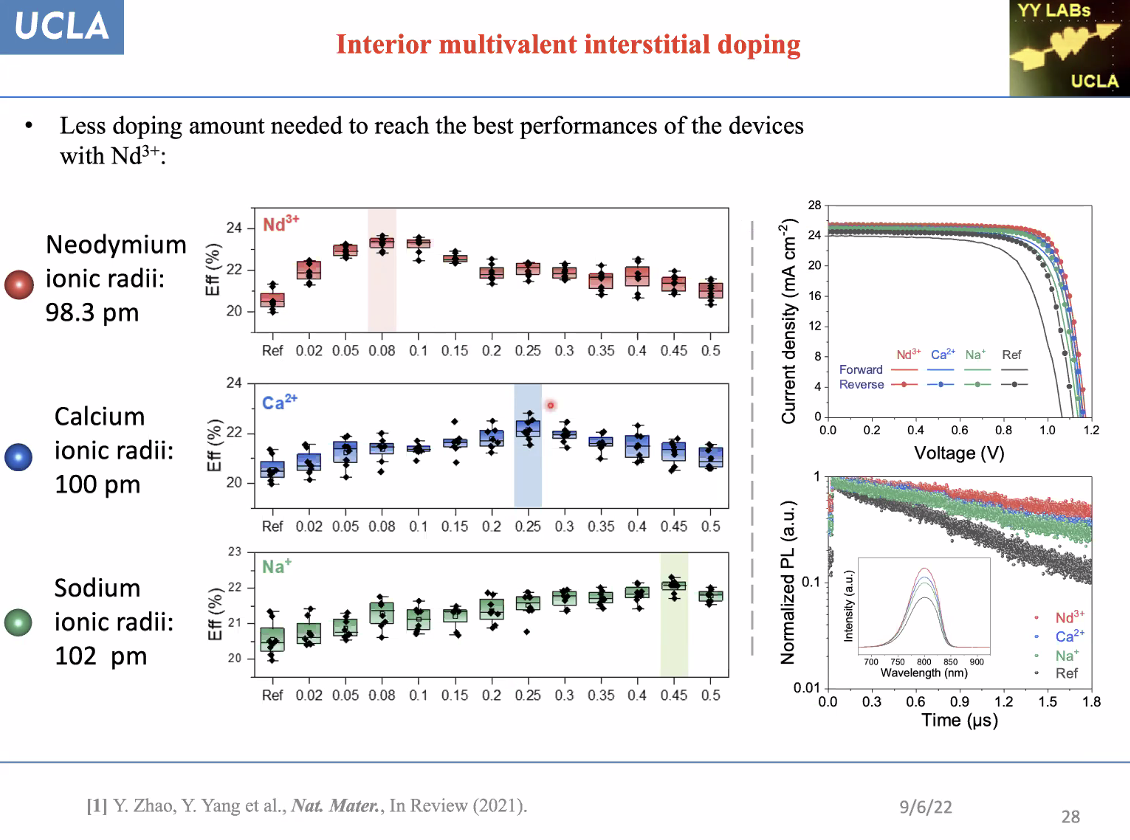

the Nd3+ is most effective to prevent ion migration

Pasted image 20220907112428.png

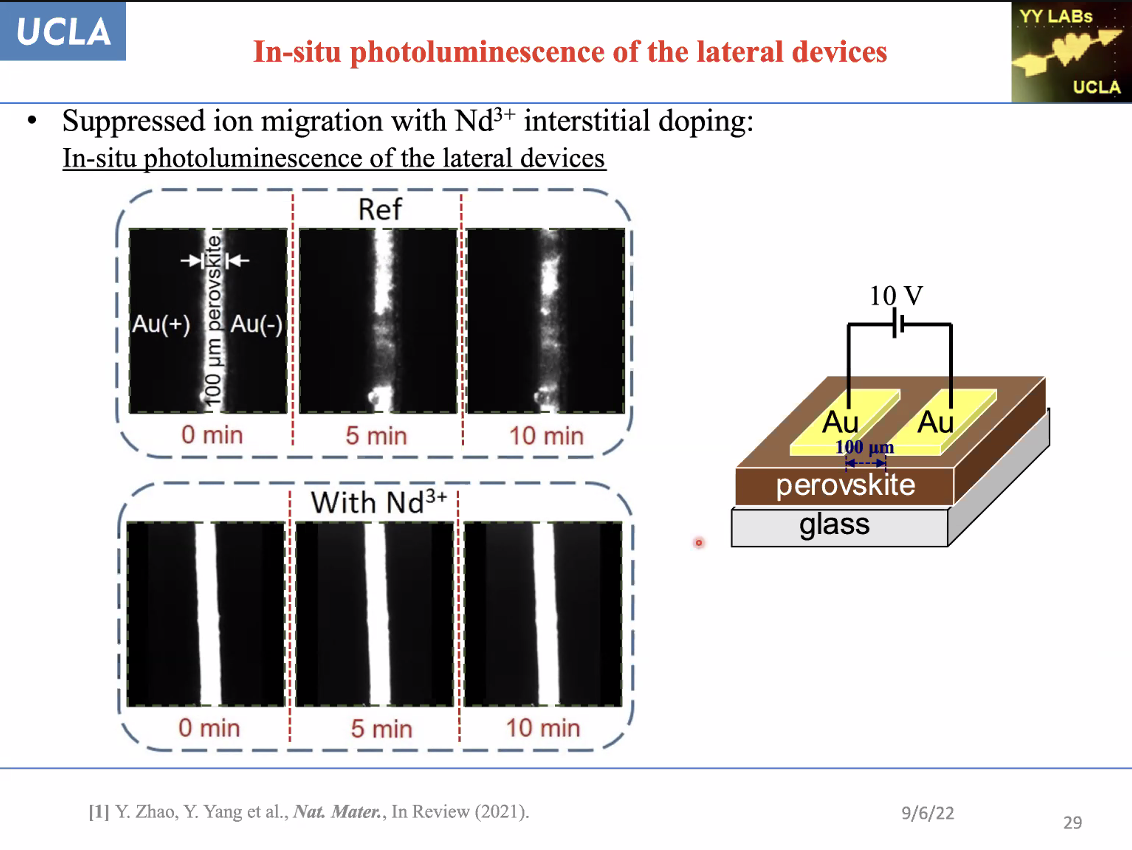

Pasted image 20220907112506.png

Pasted image 20220907112532.png

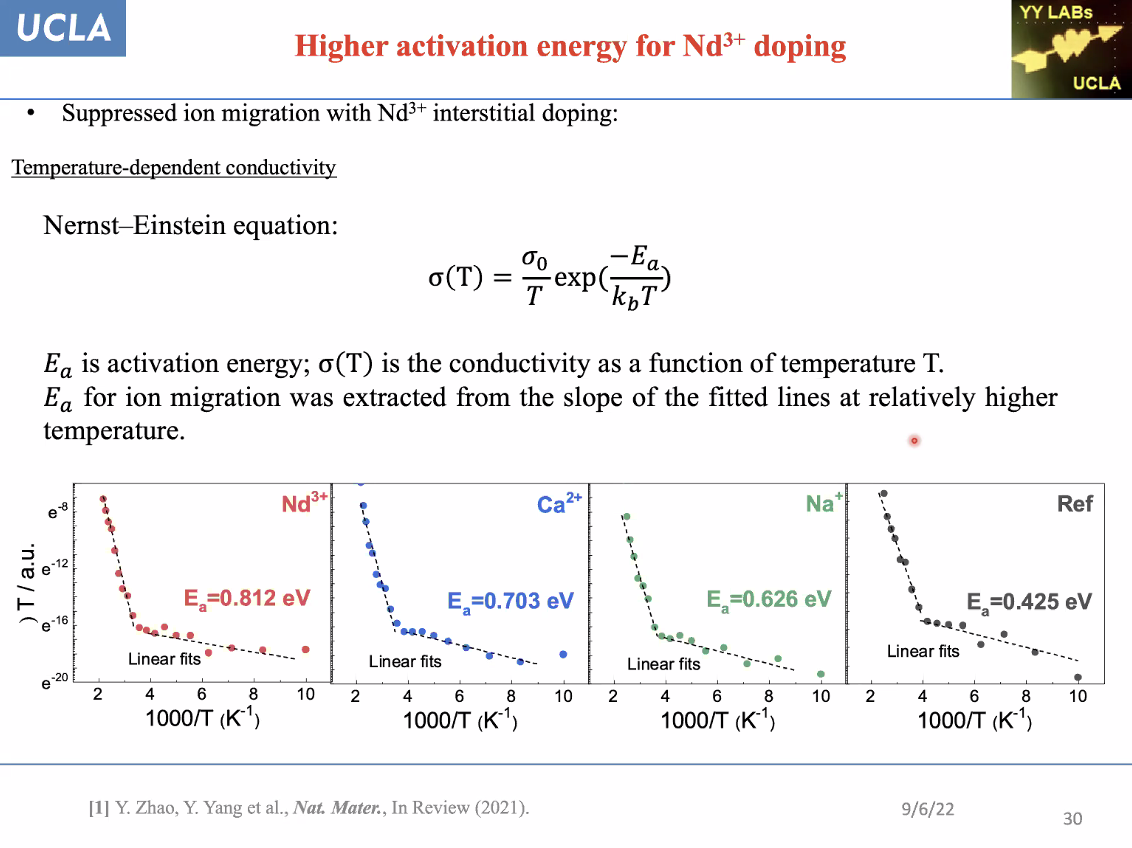

raise the ion migration energy in Nd3+

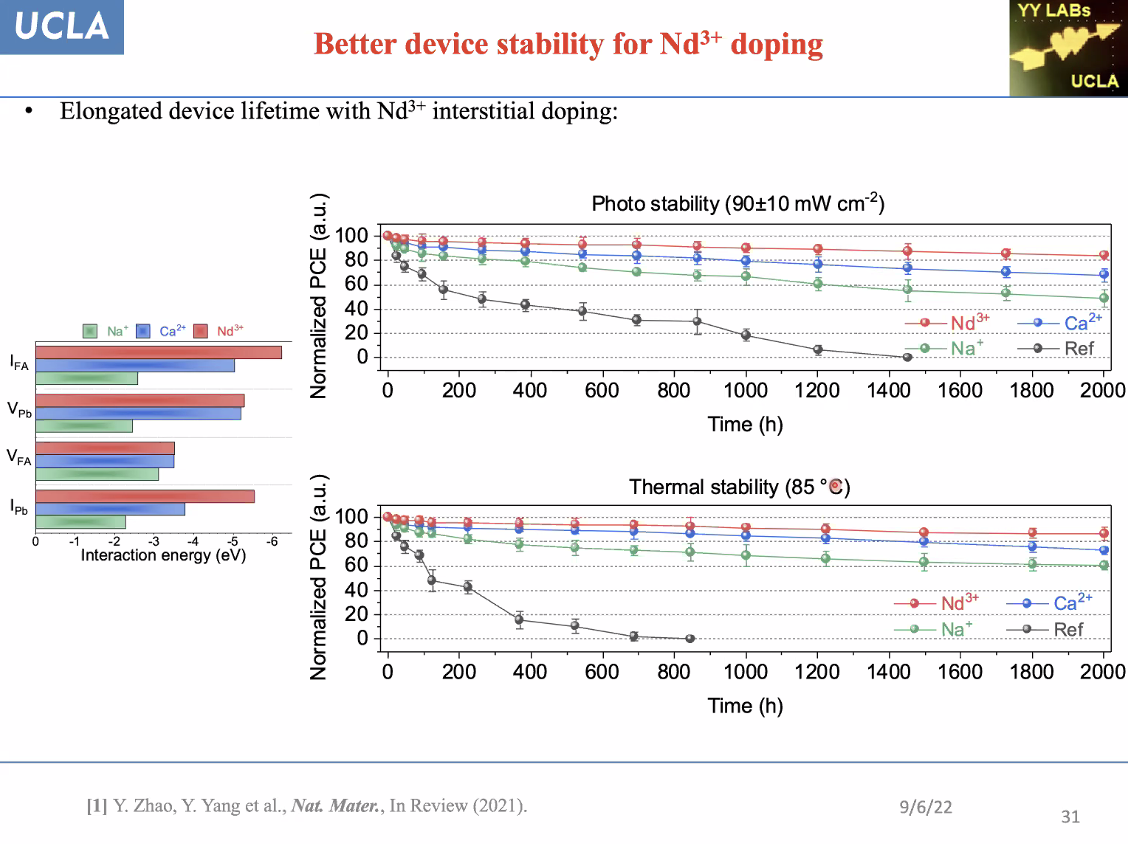

Pasted image 20220907112613.png
